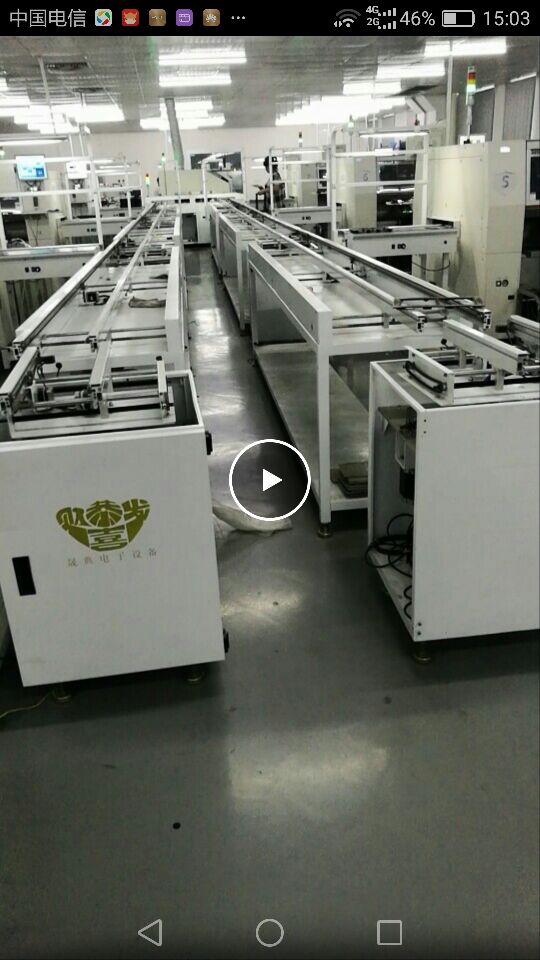

SMT Line Machine PCB 90 degree Turn Conveyor for SMT Line
1. This unit is used to redirect PCBs flow into different channels in a production line(rotate 90 degrees, 180 degrees, 270 degrees).
2. Enclosed design with built-in torque limiter ensures highest level of safety.
3.Top cover can be opened for easy access to hardware during maintenance.
4.Steady and precise scaling (retractable motor).
5. Parallel and smooth width adjustment(screw).
6. Minimize transmission clearance between conveyor.
7.Different lengths available upon request.
8.Compatible SMEMA interface.
echnical parameters
Circulation time | About 15 seconds |
Power supply | 220-230V AC (specify), single phase |
Electrical load | Approx. 180 VA |
Air pressure | 0.45-0.6Mpa |
Gas flow | Approx. 30L/min |
Transport height | 900±20mm (specify) |
Transport direction | L→R or R→L (optional) |
Specification
Model | 300 | 350 |
PCB board dimension (L×W) ~ (L×W) | (50×50) ~ (450×300) | (50×50) ~ (450×350) |
Dimension (L×W×H) | 520×520×900 | 570×570×900 |
Weight | Approx.110kg | 130kg |
